3104



3104

3104 Aluminum for Pop Cans

3104 aluminum sheet is often used to make the body of the pop cans and can lids. It has high tensile strength and elongation,which is our best selling product. Inquire now!

Alloy3104

TempersH19

Surfacemill finish, coated, printed

Application for pop can lid

CERTIFICATE

Why is aluminum bottle cap material popular



Compared with aluminum caps, the cost of plastic bottle caps is about double or even more. In comparison, the aluminum pp caps is of simple structure, strong adaptability, and good sealing effect. It can not only print colorful patterns, but also easily achieve mass production and has low cost.

3104 aluminum sheet is a deformed aluminum alloy with high tensile strength and an elongation of up to 20%. It has good deep drawing performance and is suitable for thinning, stretching and lightweighting to reduce the amount of material used. The requirements for each process of pop cans are strict, and our company strictly controls each process so that the product has appropriate strength and formability.

Specifications

Alloy

Thickness

Width

Length

3104

0.1-500 mm

100-2650 mm

500-16000 mm


Applications



There are two main types of aluminum alloy sheets used in the production of aluminum alloy cans. The lids are generally made of 3104, 5182 and 5052 aluminum sheet; the can body is made of anti-rust aluminum alloy containing Mn and Mg, generally 3104 alloy, which has a certain tensile strength and good formability.

pop cans.jpg


Technical standards

Chemical composition(%)

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

3104

0.2-0.25

0.45-0.55

0.14-0.2

1.1-1.3

1.2-1.3

0.05

0.1

0.015-0.025

Alloy

3104 alloy for pop can lid

Temper

H19

Mechanical properties

UTS: 270-320 MPa

TYS: 230-280 MPa

EL: 5%

Thickness and tolerance mm

0.20-0.36

(+0.003,-0.003)

Width and tolerance(mm)

800-1730

(+1.0,-0)

Coil ID(mm)

405 or 505

(+0.5,-0.5)

Coil OD(mm)

1300-1800


Advantages of 3104 aluminum sheet



On the one hand, it is stable in nature and does not easily react with the products it contains, ensuring the safety of food and beverages. On the other hand, the 3104 material is lighter, which has the advantage that the sealed containers made from it can be lighter, easier to transport, and save costs.


With the upgrading of can production technology, the requirements for the surface performance of 3104 aluminum sheet are becoming higher and higher. Haomei Aluminum keeps investing in the research and development and upgrading of 3104 can aluminum coil processing technology to ensure that the quality of the alloy used by customers is at a high standard in the market.


3104 aluminum sheet for pop cans.jpg


Why choose Haomei Aluminum

1. Thickness tolerances shall be implemented according to the requirements of the process card。


2. The surface is smooth, without defects such as cracks, bubbles, through-holes, metal and non-metal press-in, light and dark streaks, etc.


3. During the rolling process, the surface quality shall be randomly checked at least every 3 rolls, and the surface quality of each roll of the finished product shall be checked.

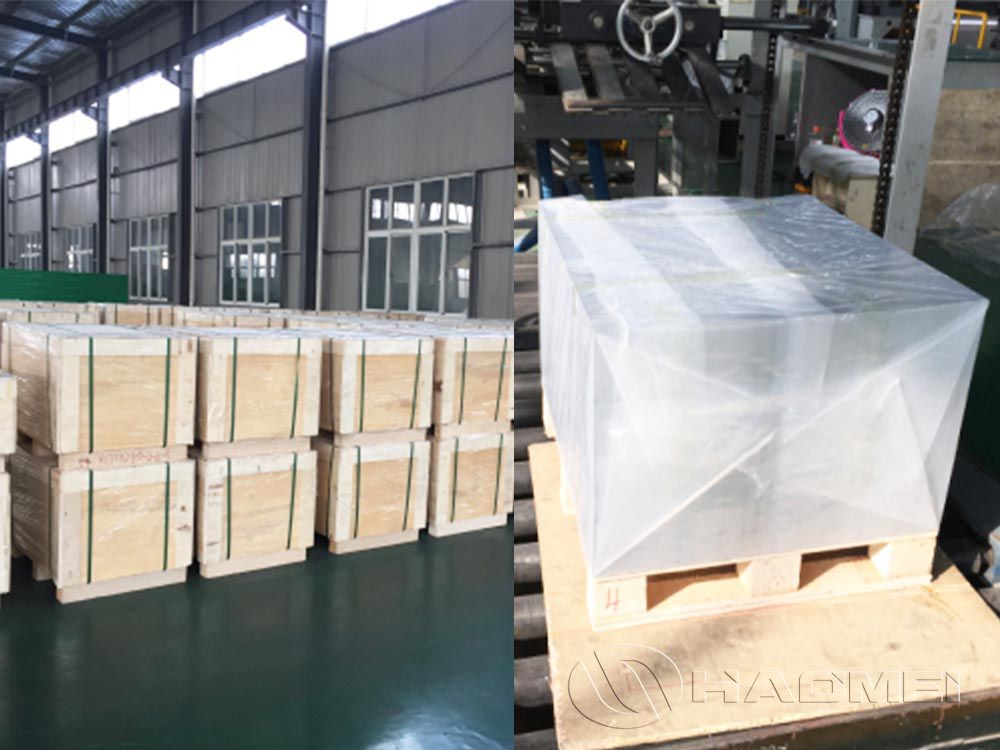

3104 aluminum sheet packaging.jpg
