Beer bottle caps have 21 teeth. The caps of bottled beer are made of aluminum cap material. The chosen alloy are 3105 aluminum alloy with better strength. What will affect its sealing performance? Learn more.
Applicationbeer bottle cap
Alloy3105 aluminum sheet
CERTIFICATE
As a part of packaging, wine bottle caps have two main functions: one is sealing, which protects wine; the other is aesthetics. Most of them use aluminum bottle caps, which have a simple appearance and fine production. Advanced printing technology makes them consistent in color and exquisite in pattern, giving people a sense of refinement and elegance.
In order to ensure that the bottle cap is easy to print after it is formed, the bottle cap material surface is required to be flat and free of rolling marks, scratches and stains. The aluminum alloys are 8011, 3003, 3105,etc. The specification is generally 0.20-0.23 mm in thickness and 449mm -796mm in width. Aluminum bottle cap materials can be produced by hot rolling or continuous casting and rolling, and then cold rolling.

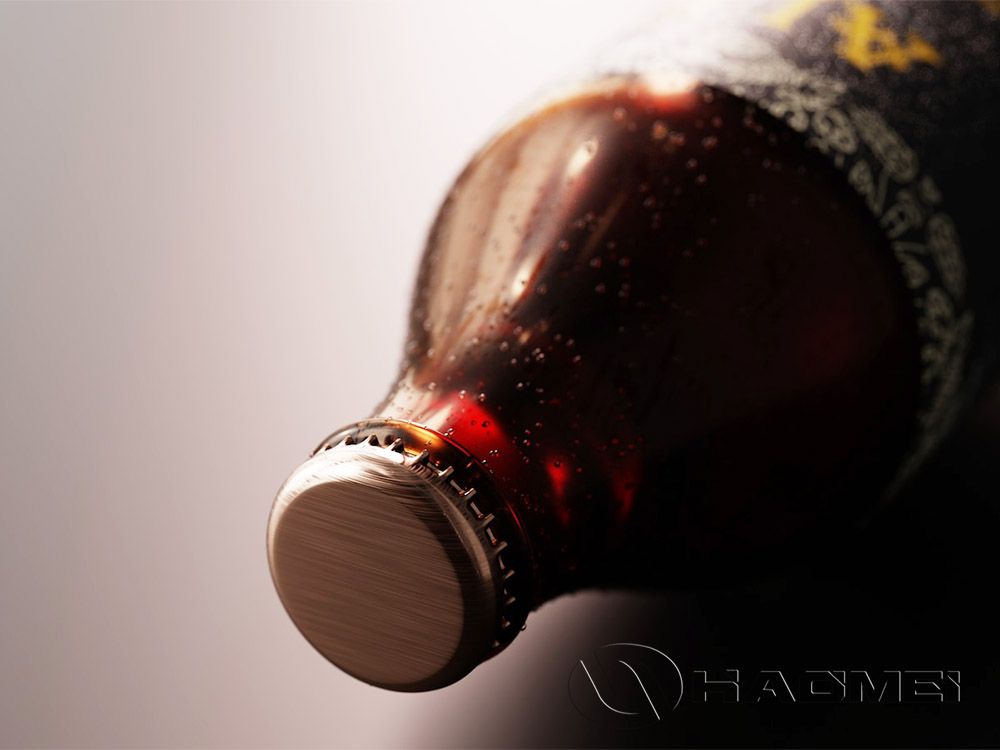

Beer bottle caps have 21 teeth. It is manufactured in accordance with the "DIN6099" standard set by Germany, which is also the current international standard. The performance of beer bottle caps mainly depends on the sealing and firmness (bite).
This means that the number of pleats on each bottle cap must be proportional to the contact area of the bottle mouth to ensure that the contact surface area of each pleat can be larger. The wavy seal on the outside of the bottle cap can not only increase friction, but also provide convenience to turn on.
In comparative tests with different tooth numbers of 18, 21, 23, 24, and 25, if the number of teeth is too low, the carbon dioxide in the bottle is easy to lose, while if the number of teeth is too high, it is not easy to open. As a result of repeated testing, 21 teeth became the best choice to meet these two requirements.
The caps of bottled beer are made of aluminum cap material. The sealed aluminum bottle caps prevent the taste of the beer from changing when it comes into contact with the air, and better prevent the wine from spraying out during transportation.
The main metal element of 3105 aluminum alloy is Al-Mn. On the basis of 3003 aluminum alloy, some Cu and Mg are added to increase the mechanical properties of the finished product. This alloy has higher strength than 3003.
The main thickness of 3105 painted aluminum sheet is 0.15-0.3mm, and the status is O state, H12, H14, H16, etc. This material is suitable for high strength applications. It is suitable for threaded caps, pp bottle caps, carbonated beverage caps.
Regardless of the barrier properties of the bottle body and cap, the connection between the bottle body and the cap is the only possible location (separator) where leakage may occur. Therefore, the sealing performance of the bottle cap is fundamental to the sealing performance of the container. According to the different uses of bottle caps, there are different regulations for the test methods of non-gas caps and gas-containing caps.
In fact, the torque force of the bottle cap (cap tightening force and opening force) is also the main factor affecting its sealing performance. Excessive torque force will bring great difficulties to the opening and locking of the bottle cap, reducing the convenience of use. Too small a torque will reduce the sealing performance of the container, which may lead to product leakage during transportation.
